美式貨鉤
執(zhí)行標準：
安全系數(shù)：4
制造材料：合金鋼
產(chǎn)品顏色：紅色
|

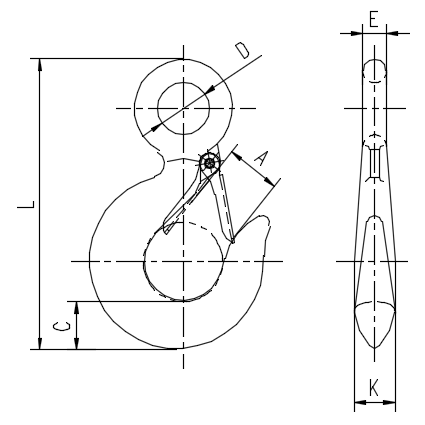

320A 型號 |
額載 T |
破斷 T |
D mm |
L mm |
C mm |
A mm |
E mm |
K mm |
自重 KG |
|
0.75T |
0.75 |
3 |
16.00 |
97 |
17 |
19 |
9 |
16 |
0.18 |
|
1T |
1 |
4 |
19.05 |
110 |
19 |
22 |
9 |
16 |
0.27 |
|
1.5T |
1.5 |
6 |
23.11 |
125 |
21 |
23 |
10.5 |
17.5 |
0.35 |
|
2T |
2 |
8 |
28.45 |
140.5 |
26 |
24 |
12.5 |
21 |
0.65 |
|
3T |
3 |
12 |
31.75 |
162 |
28 |
27.5 |
14.5 |
23 |
0.86 |
|
5T |
5 |
20 |
39.62 |
201 |
37 |
33 |
18 |
30 |
1.75 |
|
7T |
7 |
28 |
50.8 |
256 |
46.5 |
40 |
23 |
38 |
3.5 |
|
11T |
11 |
44 |
61.98 |
317 |
57 |
51 |
28 |
46 |
6.3 |
|
15T |
15 |
60 |
72.14 |
360 |
67 |
57 |
32.5 |
55 |
7.5 |
|
320C 型號 |
額載 T |
破斷 T |
D mm |
L mm |
C mm |
A mm |
E mm |
K mm |
自重 KG |
|
0.5T |
0.5T |
2 |
16.00 |
97 |
17 |
19 |
9 |
16 |
0.18 |
|
0.75T |
0.75T |
3 |
19.05 |
110 |
19 |
22 |
9 |
16 |
0.27 |
|
1T |
1T |
4 |
23.11 |
125 |
21 |
23 |
10.5 |
17.5 |
0.35 |
|
1.5T |
1.5T |
6 |
28.45 |
140.5 |
26 |
24 |
12.5 |
21 |
0.65 |
|
2T |
2T |
8 |
31.75 |
162 |
28 |
27.5 |
14.5 |
23 |
0.86 |
|
3T |
3T |
12 |
39.62 |
201 |
37 |
33 |
18 |
30 |
1.75 |
|
5T |
5T |
20 |
50.8 |
256 |
46.5 |
40 |
23 |
38 |
3.5 |
|
7.5T |
7.5T |
30 |
61.98 |
317 |
57 |
51 |
28 |
46 |
6.3 |
|
10T |
10T |
40 |
72.14 |
360 |
67 |
57 |
32.5 |
55 |
7.5 |
